model |
¡¡ |
WSR-Series |
¡¡ |
¡¡ |
| ¡¡ |
item |
30kW |
40kW |
50kW |
60kW |
| | size |
555mm * 445mm * 540mm |
| | weight |
66kg |
| ¡¡ |
power
supply |
1phase 220V/
3phase 380V |
1phase 220V/
3phase 380V |
3phase 380V |
3phase 380V |
| ¡¡ |
kvp
limits |
40kvp-125kvp
(1kvp steps) |
40kvp-125kvp
(1kvp steps) |
40kvp-150kvp
(1kvp steps) |
40kvp-150kvp
(1kvp steps) |
| ¡¡ |
mA
limits |
10mA-300mA
(13 steps) |
10mA-
500mA
(14 steps) |
10mA-500mA/650mA
(14/15 steps) |
10mA-800mA
(15 steps) |
generator |
power
out put |
300mA @ 100kvp
200mA @ 125kvp |
500mA @ 80kvp
300mA @ 100kvp
200mA @ 125kvp |
600mA @
80kvp
500mA @ 100kvp
300mA @ 150kvp |
800mA @
75kvp
500mA @ 120kvp
300mA @ 150kvp |
| ¡¡ |
mAs
limits |
0.5mAs-500mAs |
0.5mAs-600mAs |
0.5mAs-800mAs |
0.5mAs-800mAs |
| ¡¡ |
A.P.R
mode |
selective
anatomical
mode,
576mode, AEC+768mode |
selective
anatomical
mode,
576mode, AEC+768mode |
selective
anatomical
mode,
576mode, AEC+768mode |
selective
anatomical
mode,
576mode,
AEC+768mode |
| ¡¡ |
technical
selector
system
self
diagnosis |
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
|
|
 |
|
|
|

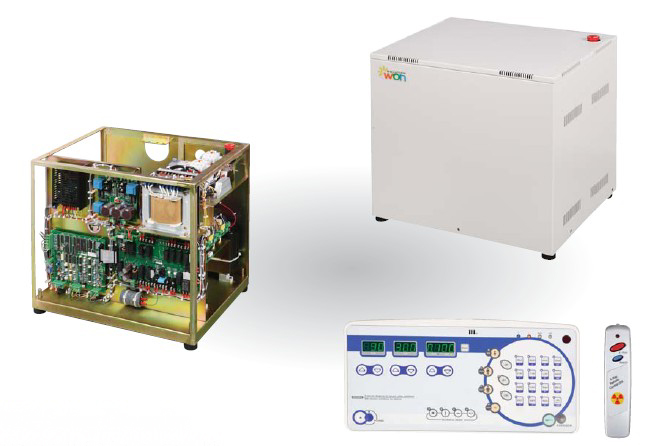

Can reduce shooting time about 50% than general
method when WSR-40 system
films human body by high frequency inverter method

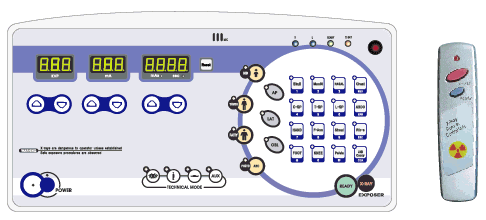

and because control
console is small and light, is possible by wall
tapestry and Radiographic is
available by remote control switch conveniently
that user films.
And have A.P. R function to basis. |
|
|
| ¡¡ |
 |
| ¡¡ |
 |
|
| ¡¡ |
| ¡¡ |
model |
¡¡ |
WSRF-Series |
¡¡ |
¡¡ |
| ¡¡ |
item |
30kW |
40kW |
50kW |
60kW |
| | size |
555mm * 445mm * 710mm |
| | weight |
92kg |
| ¡¡ |
power
supply |
1phase 220V/
3phase 380V |
1phase 220V/
3phase 380V |
3phase380v |
3phase380v ¡¡ |
| ¡¡ |
radio
kvp |
40kvp-125kvp |
40kvp-125kvp |
40kvp-150kvp |
40kvp-150kvp |
| ¡¡ |
fluoro
kvp |
40kvp-125kvp |
40kvp-125kvp |
40kvp-130kvp |
40kvp-130kvp |
¡¡ |
radio
mA |
50mA-300mA |
50mA-500mA |
10mA-500mA/650mA |
10mA-800mA |
| ¡¡ |
fluoro
mA |
0.5~5mA |
0.5~5mA |
0.5~5mA |
0.5~5mA |
generator |
power
out put |
300mA @ 100kvp
200mA @ 125kvp |
500mA @ 80kvp
300mA @ 100kvp
200mA @ 125kvp |
600mA @
80kvp
500mA @ 100kvp
300mA @ 150kvp |
800mA @
75kvp
500mA @ 120kvp
300mA @ 150kvp |
| ¡¡ |
mAs
limits |
0.5mAs-500mAs |
0.5mAs-600mAs |
0.1mAs-800mAs |
0.1mAs-800mAs |
| ¡¡ |
fluoro
time |
0-5min |
0-5min |
0-5min |
0-5min |
| ¡¡ |
A.P.R
mode
technical
selector
system
self
diagnosis |
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error |
|
|
 |
|
 |
|
|

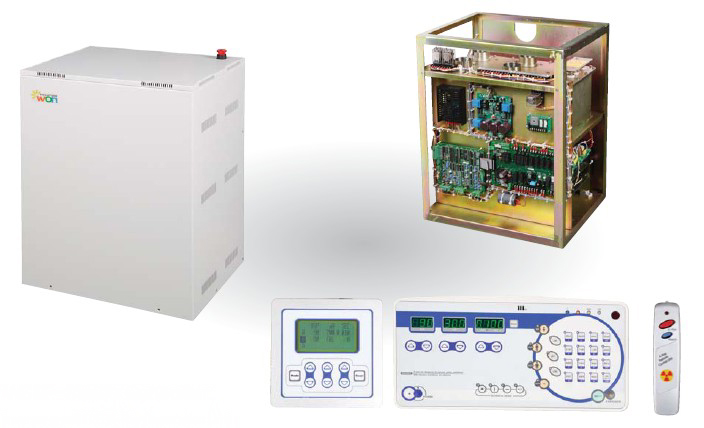

WSRF-50 system human body general Radiographic and
Fluoroscopic are possible R/F system by high
frequency inverter mode and when Fluoroscopic is

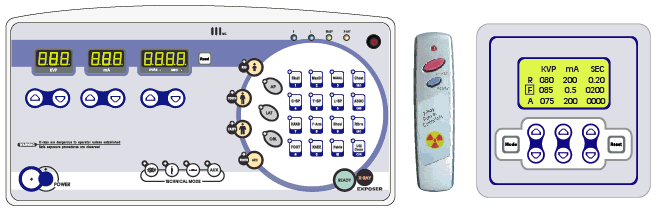

very convenient that user operates because console
that can control condition is attached on R/F
table. When Fluoroscopic, can use more
conveniently
if use ABS and AEC function that is option
function. |
|
|
|
|
|
|
